10km AOA/TDOA Fixed Drone Detector 300MHz-6GHz Full-Frequency Detection&Position&3km Jamming & Anti-Drone FPV C-UAV System Airport|Prison|Border Dji
| Plaats van herkomst | Guangdong, China |
|---|---|
| Merknaam | LDSK |
| Min. bestelaantal | 1 stuk |
| Prijs | USD 30000 |
| Levertijd | 7-10 werkdagen |
| Betalingscondities | D/A, D/P, T/T, Western Union, Paypal |
| Levering vermogen | 5000 stuks per maand |
Neem contact met me op voor gratis samples en coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Model-NR. | S300 | Detectiefrequentie | 300 MHz ~ 6 GHz |
|---|---|---|---|
| Detectiebereik | 10 km | Soorten detectiedrones | De meeste conventionele drones voor consumenten, enkele onconventionele drones, enkele drones met va |
| Gebruiksgevallen | Overheid en openbare veiligheid、Openbare locaties en evenementen、 Bescherming van kritieke infrastru | ||
| Markeren | 10km drone detector with jamming,fixed drone detector 300MHz-6GHz,anti-drone system for airports |
||
Productomschrijving

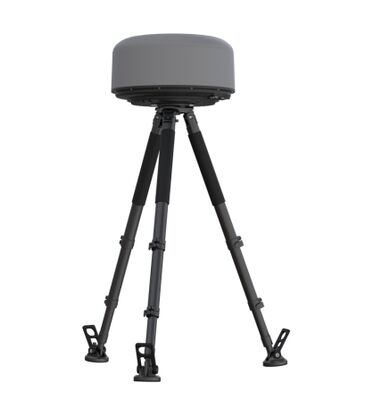

10km AOA/TDOA Fixed Drone Detector with 3km Jamming
Please leave your WhatsApp and Email, we will contact you!
Product Features
- Full Band Detection: Broadband detection accurately identifies most consumer drones, WIFI toy machines, DIY travel machines, analog/digital image transmission, and hundreds of other models
- High Real-Time Performance & Low False Alarm Rate: Signal reception, radio frequency processing, and signal processing are completed at the detection front end; unique small signal recognition technology ensures accurate and reliable results
- All-Weather, All-Day Operation: Suitable for complex electromagnetic and climatic environments, unaffected by lightning, haze weather, or night conditions; provides 7*24 hours 360° real-time monitoring
- Excellent Scalability: Network deployment of multi-station detection equipment enables TDOA network positioning, expands detection coverage, and achieves precise UAV positioning
Technical Specifications
Detection Technical Indicators
| S/N | Index | Parameter |
|---|---|---|
| 1 | Detection System | Radio Passive Detection |
| 2 | Detection Signal Type | UAV digital transmission signal, FPV Analog signal, WIFI system UAV signal, DVBS signal |
| 3 | Detection Drone Types | Most conventional consumer drones, some unconventional drones, fixed-wing drones, and flying drones |
| 4 | Detection Coverage Band | 300MHz~6GHz Frequency Band |
| 5 | Detection Range | Horizontal 360° Omnidirectional |
| 6 | Single Station Direction Finding Accuracy | ≤3°, supports multi-station TDOA network positioning |
| 7 | Detection Radius | ≥ 3 km (open environment, drone transmission power >0.1W, bandwidth 10MHz) |
| 8 | Detection Height | 1km (open environment, drone transmission power 0.1W) |
| 9 | Target False Alarm Rate | ≤5 pieces/day (24H) (typical urban environment) |
| 10 | Receive Sensitivity | ≤-115dBm |
| 11 | Drone Discovery Time | ≤3s |
Protocol Analysis Technical Indicators (For Ocusync DJI Drone)
| Serial Number | Index | Parameter |
|---|---|---|
| 1 | Working Principle | UAV Signal Message Level Protocol Analysis |
| 2 | Parse Content | Supports analyzing GPS coordinates, flight altitude, speed, direction, aircraft model, SN code, take-off point address; accurately locates drone remote control (pilot) |
| 3 | Detection Distance | 5km-10km |
| 4 | Positioning Accuracy | DJI drones ≤2m; DJI drone remote control ≤2m (open environment, drone transmission power 0.1W) |
| 5 | Remote Control Detection | Detects drone remote controller location, displays longitude/latitude coordinates, direction; supports remote control location tracking |
| 6 | Serial Number Identification | Supports identification of drone serial numbers; maintains target identification during frequency switching |
Applications
About Our Company
Frequently Asked Questions
Q1: Are you a factory or trading company?
We are a factory located in Shenzhen City, China. Welcome to visit us.
Q2: Why Choose Us?
- Excellent Products: Effective, Popular, Affordable
- Fast Delivery: Priority Production for Urgent/Bulk Orders
- After-Sales Service: Free Replacement for Faulty Products
Q3: What can you buy from us?
- Jamming/Detection Module
- Drone Jammer
- Drone Detector
- Integrated detection and jamming device
Q4: What is the process of placing an order?
Communication → Payment → Production → Shipment
Q5: How about the shipping time and shipping method?
Typically 5-10 business days (depending on the product). We support almost any shipping method you require.
Q6: How to contact us?
Please leave your email address/WhatsApp number, and we will contact you.
